1U 96 Core Fiber Optical MTP MPO Patch Cord OM4 FTTH High Quality LC Quad Adapter Max Modular
MPO / MTP patch cord are designed to high density multifibers solutions,fit for different installation environment and easy to install between the trunk line,data centers and buildings.Our trunk cables are 100% factory tested and can meet your special requirements.All the MTP/MPO connector compliance with Telcordia GR-1435-Core Compliant.
High Density 96 Fibers 1U 19" Breakout Fiber Patch Panel is designed to connect 40G QSFP ports with MTP/MPO fiber cables, mapping to the back of the panel, then breaking out as 48x 10G on the front panel with LC fiber cables. All breakout panels meet the requirements of TIA/EIA, IEC standards etc., serialized and applied in data center, telecommunication and storage area network.
Features:
1. Maximizes density with up to 96 fiber connections in 1U for efficient utilization of rack space.
2. Allows for an easy upgrade path moving 40GbE to 4x 10GbE or 100GbE to 4x 25GbE connectivity.
3. Provides reduced overall insertion loss with low channel to channel variability for improved channel link loss performance.
4. Improved reliability and quick deployment to reduce installation time and cost.
5. Removable cable management tray on the back, effectively manage trunk cables.
6. Provide termination, protection, connection, management of fiber optic cable
7. RoHS compliant
8. Full assembly (loaded) or empty panel optional
9. Black or White color
Patch Panel Optical data:
| 1u 96 Core MTP/MPO Patch Panel | | |
| Connector | Insertion Loss | Return Loss |
| MPO | ≤0.75dB | ≥25dB |
| LC | ≤0.3dB | ≥50dB |
MTP MPO Patch Cord Optical data:
| Optical fiber type | MM:4F,8F,12F,24F,48F,96F | SM:4F,8F,12F,24F |
| Standard loss IL(dB) | ＜0.75 dB | ＜0.75 dB |
| Standard loss RL(dB) | >25 | >50(APC),>20dB(PC) |
| Low loss IL(dB) | 0.35 | 0.35 |
| Low loss RL(dB) | >35 | >50(APC),>35dB(PC) |
Specifications:
| Product Name : | 1U Rack Mount 19 inch Enclosure Box 96 Fiber ODF fiber termination box |
| A adapter ports | output LC / MTP, SC, FC, ST, etc... |
| B adapter ports | input 12* MTP / MPO |
| Housing material | SPCC steel with powder coating or aluminum |
| Customize | big order welcome customize, much better price. |
End face geometric parameters and standards:
| Requirement | MM (50 & 62.5/125) | SM(APC) |
Surface inclination angle
(X) | -0.2 °/0.2° | -0.2° / 0.2° |
Surface inclination angle
(Y) | -0.2°/ 0.2° | 7.8°/ 8.2 ° |
| Fiber height | 1000nm - 3500nm, | 1000nm - 3500nm, |
| Maximum height difference of all optical fibers | <750nm | <600nm |
| Core height(nm) | -50-300 mm | -50-300 mm |
Scheme:A / B / C / D

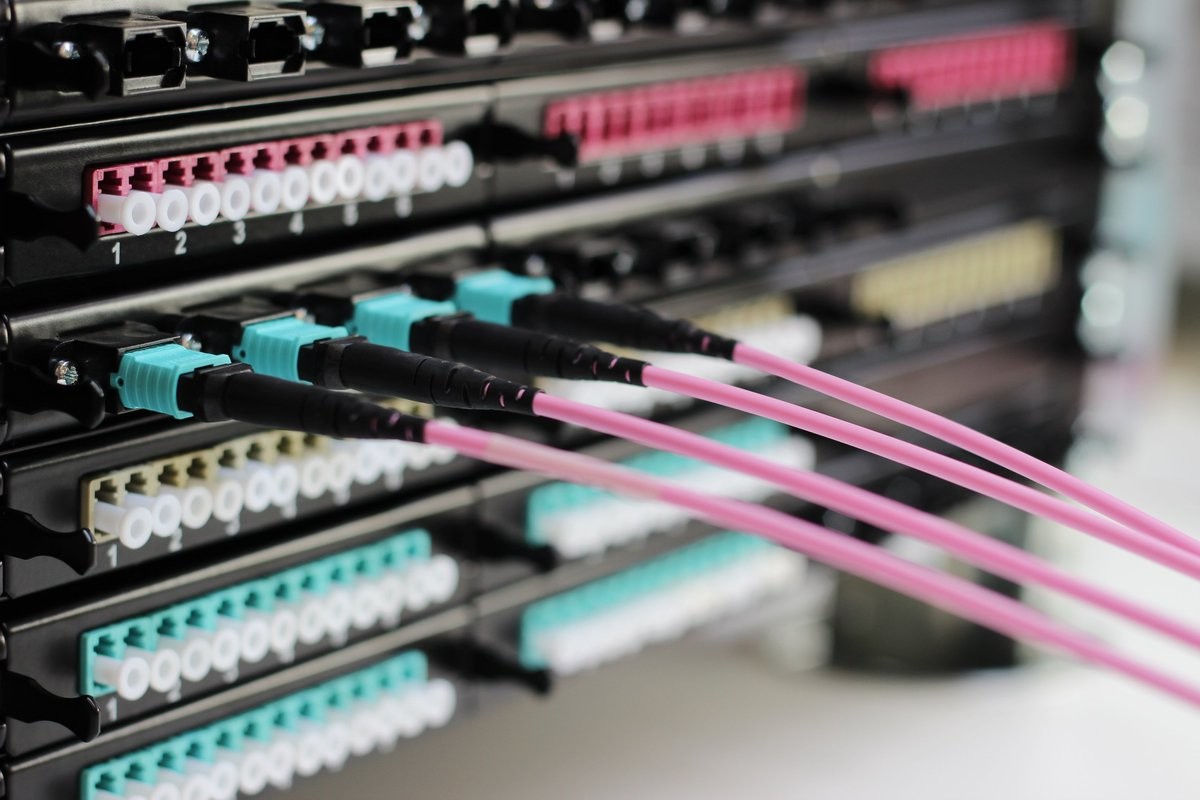

Application:
Our advantage :
1: We are a factory with more than 200 employees and short delivery times.
2: The product has passed strict testing and the quality is guaranteed.
3: South Korea imports chips, work is more stable;
4: 100% support after-sales service, if there is a problem in the product use process, we can replace it for you for free.
