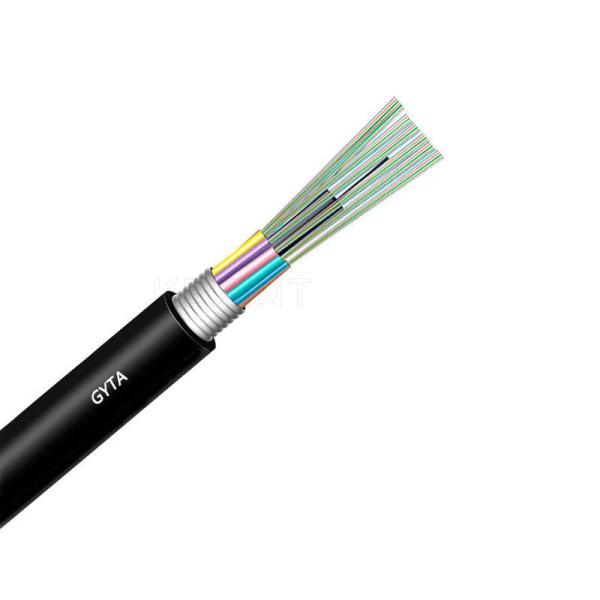

KEXINT GYTA 2 - 96 Cores Armored Fibre Optic Cable Outdoor Armored Stranded Loose Tube

Name: KEXINT GYTA 2 96 Cores Armored Fibre Optic Cable Outdoor Armored Stranded Loose Tube
Brand: KEXINT
Price: 432.15 USD

Wholesale KEXINT GYTA 2 - 96 Cores Armored Fibre Optic Cable Outdoor Armored Stranded Loose Tube from china suppliers

Brand Name : KEXINT

Model Number : GYTA

Certification : CE/ROHS/ISO9001

Place of Origin : CHINA

MOQ : 10 KM

Price : 432.15+$+KM

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000+KM+week

Delivery Time : 10

Packaging Details : Wooden Drum Cartons

Fiber count : 2-96 cores

Fiber type : G657A/G652D

strength member : Steel wire/FRP

Allowable Tensile Strength : 3000N

Jacket Material : PE PVC LSZH HDPE

Color : Black

Package : Wooden Drum Cartons

Temperature : -40℃ -- +70℃

Contact Now

Armored Loose Tube Double Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.
Characteristics:
· Good mechanical and temperature performance · High strength loose tube that is hydrolysis resistant · Special tube filling compound ensure a critical protection of fiber · Crush resistance and flexibility

· PE/LSZH sheath protects cable from ultraviolet radiation · 100% cable core filling · Double jacket single armored · (GYTA) for rodent pr.otection

Description:
1.250μm Coloured Fiber 2.PBT loose Tube 3.Tube Filling Compound(Gel) 4.Steel wire central strength menber
5.PE/LSZH outer Sheath

 6.PSP corrugated steel tape armored



Technical Specifications :

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fibers per Tube	Max No. of (Tubes+fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fibers per Tube	Max No. of (Tubes+fillers)	Short Term	Long Term	Short Term	Long Term
2~30	13.2	162	6	5	3000	1000	3000	1000
32~48	13.8	175	8	6	3000	1000	3000	1000
50~72	14.6	205	12	6	3000	1000	3000	1000
74~96	16.0	230	12	8	3000	1000	3000	1000
98~144	17.6	285	12	12	3000	1000	3000	1000
>144	Available upon customer’s request


Note:
 1. For flame retardant cable, outer sheath can be made of low-smoke halogen-free (LSZH) material2.Upon customer’s request, cables with longitudinal color strip on outer sheath can be offered. More details, please refer to GYTA series.
 3. Special cable structure can be designed and manufactured on customer’s request.
